Product Description:

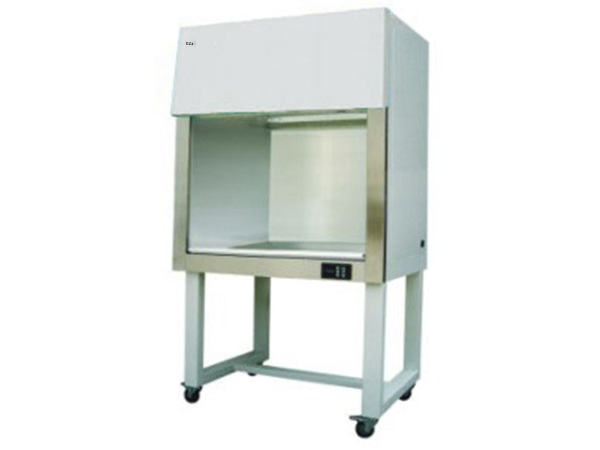

◆ This is a new type of vertical one-way purification bench, which is widely used in electronics, national defense, precision instruments,
instrument pharmacy, chemical experiments and other fields.
Product features:
◆ 1. Box body: 1.2mm thick high-quality cold-rolled steel plate, acid pickling and phosphating anti-corrosion, epoxy resin powder is
applied on the surface without electrostatic spraying, acid-base and anti rust, and the table top is made of stainless steel;
◆ 2. Single single side vertical manifold, quasi closed table, which can effectively prevent the external air flow from entering and the
stimulation of operation odor to human body;
◆ 3. Adopt the stepless variable speed adjustable air volume fan system, touch the switch and adjust the voltage at multiple speeds to
ensure that the wind speed in the working area is in an ideal state;
◆ 4. Sliding door: double hanging glass door, open up and down, easy and flexible operation, rubber damping pad is embedded at the
bottom of the sliding door to reduce the impact when opening and closing, endless balance method code, free up and down when
pulling the door, can stay at any position;
◆ 5. Transmission: the double suspension glass door is driven synchronously through guide rail, counterweight pulley block, steel cable,
counterweight, etc., which is flexible and convenient to open up and down, with noise
◆ 6. This is the latest workbench on the market at present. The front cover can be opened directly to facilitate the replacement of filters,
electronic components and accessories.
Model and technical parameters:
Index / model | VS-1300U Double one side vertical flow |
Cleanliness grade | Grade 100 @ ≥ 0.5 μ m (209E, US Federal) |
cfu | ≤ 0.5 / dish / hour (φ 90mm culture plate) |
Mean wind speed | 0.3~0.6m/s(adjustable) |
Noise | ≤65dB(A) |
Power Supply | Single AC 220V / 50Hz |
Illuminance | ≥300LX |
Vibration half peak | ≤3μm(X.Y.Z) |
Maximum power consumption | 800W |
Weight | 200Kg |
Workspace size | 1160×690×620mm |
Overall dimension of device | 1300×730×1750mm |
Specification and quantity of high efficiency filter | 1170×710×50×① |
Specification and quantity of fluorescent lamp / UV lamp | 30w×①/30w×① |
Applicable number | Double single side / 2-person operation |
company can customize according to the specific needs of customers.
