VS-840U

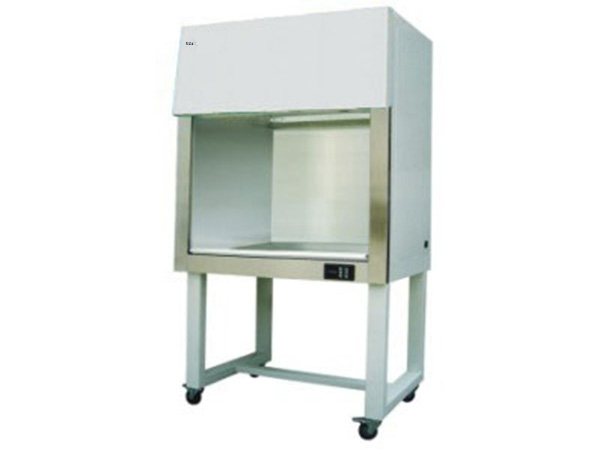

Product Name: super clean workbench
Product model: VS-840U
Product standard: in accordance with JG / T 292-2010 super clean workbench standard

Product description

    Product Description:

◆  This is a new type of vertical one-way purification bench, which is widely used in electronics, national defense, precision instruments,

     instrument pharmacy, chemical experiments and other fields.

    Product features:

◆  1. Box body: 1.2mm thick high-quality cold-rolled steel plate, acid pickling and phosphating anti-corrosion, epoxy resin powder is

     applied on the surface without electrostatic spraying, acid-base and anti rust, and the table top is made of stainless steel;

◆  2. Single single side vertical manifold, quasi closed table, which can effectively prevent the external air flow from entering and the

     stimulation of operation odor to human body;

◆  3. Adopt the stepless variable speed adjustable air volume fan system, touch the switch and adjust the voltage at multiple speeds to

     ensure that the wind speed in the working area is in an ideal state;

◆  4. Sliding door: double hanging glass door, open up and down, easy and flexible operation, rubber damping pad is embedded at the

     bottom of the sliding door to reduce the impact when opening and closing, endless balance method code, free up and down when

     pulling the door, can stay at any position;

◆  5. Transmission: the double suspension glass door is driven synchronously through guide rail, counterweight pulley block, steel cable,

     counterweight, etc., which is flexible and convenient to open up and down, with noise

◆  6. This is the latest workbench on the market at present. The front cover can be opened directly to facilitate the replacement of filters,

     electronic components and accessories.


    Model and technical parameters:


    Index / model

    VS-840U Single side vertical laminar flow

    Cleanliness grade

    Grade 100 @ ≥ 0.5 μ m (209E, US Federal)

    cfu

    ≤ 0.5 / dish / hour (φ 90mm culture plate)

    Mean wind speed

    0.3~0.6m/s(adjustable)

    Noise

    ≤65dB(A)

    Power Supply

    Single AC 220V / 50Hz

    Illuminance

    ≥300LX

    Vibration half peak

    ≤3μm(X.Y.Z)

    Maximum power consumption

    350W

    Weight

    150Kg

    Workspace size

    700×710×680mm

    Overall dimension of device

    840×730×1750mm

    Specification and quantity of high
    efficiency filter

    705×710×50×①

    Specification and quantity of fluorescent
    lamp / UV lamp

    20w×(1)/20w×(1)

    Applicable number

    Single person single side /1 person operation

    Note: the above parameters are for reference only. If you have special requirements, please contact our marketing department. Our

     company can customize according to the specific needs of customers.
