SJ-CJ-1BU

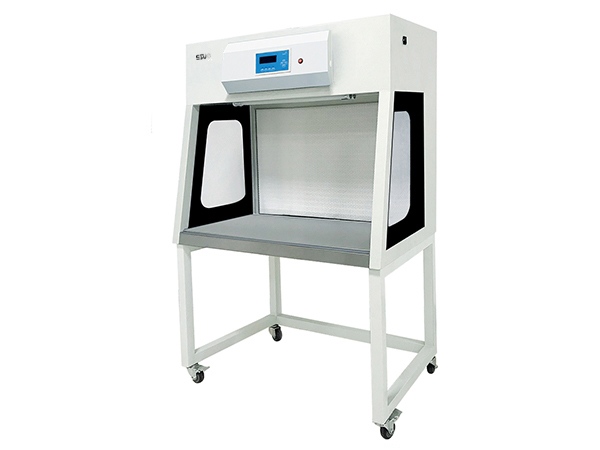

Product Name: super clean workbench
Product model: SJ-CJ-1BU (standard)
Product standard: in accordance with JG / T 292-2010 super clean workbench standard

Product description

    Product features:

◆  The control system adopts intelligent micro-computer control, touch the key to adjust the settings, LCD screen can display the working

     area temperature, fan operation, lighting, sterilization lamp and other operation status.

◆  Temperature sensor: it can detect and display the temperature in real time.

◆  Equipped with filter failure, damage and blocking alarm technology, equipped with fan overload alarm prompt to remind the user to

     replace the filter in time.

◆  The worktop is made of integrated high quality stainless steel, corrosion-resistant and easy to clean.

◆  The front 10 ° inclined operation surface is more ergonomic and comfortable to operate.

◆  Safety interlock protection design, UV lamp and lighting lamp interlock, when the lighting lamp, UV lamp can be turned on, to prevent

     the wrong operation of UV lamp from causing harm to human body, and more protect the safety of personnel.

◆  The cold-rolled steel plate spray molding process is adopted for the box body, with fine appearance spraying, which can effectively

     inhibit the growth of bacteria on the surface of the cabinet body.

◆  Double side perspective window design, better lighting effect, wider field of vision.

◆  The high efficiency filter is designed with negative pressure around the four rings and positive pressure around the operation area,

     so as to form a sterile and clean working environment.

◆  Built in HEPA high efficiency filter integrated design, clean air flow covers the whole work area, better wind speed and cleanliness.

◆  Reasonable structure design, maintenance and replacement of high efficiency filter and fan can be carried out at the back of the clean

     table, which is more convenient and quick.


    Model and technical parameters:



    Index / model

    SJ-CJ-1BU Single side (horizontal air supply)

    Cleanliness grade

    ISO 5 (Class 100)

    Settling bacteria concentration

    ≤ 0.5 / dish / hour (φ 90mm culture plate)

    Mean wind speed

    0.2-0.5m/s (adjustable)

    Noise

    ≤65dB

    Power Supply

    AC, single 220V / 50Hz

    Illuminance

    ≥300LX

    Vibration half peak

    ≤3μm(X.Y.Z)

    Maximum power consumption

    350W

    Weight

    75Kg

    Workspace size

     800×520×620mm

    Overall dimension of device

    900×750×1700mm

    Specification and quantity of high efficiency filter

    790×625×50×①

    Specification and quantity of fluorescent lamp /

    UV lamp

    20w × ①/ 20w ×①

    Applicable number

    1
