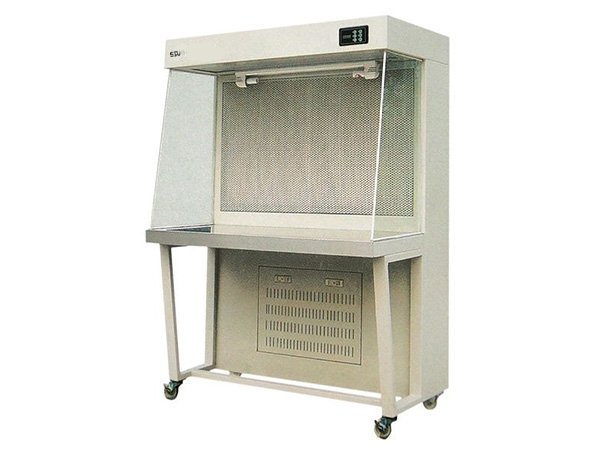

◆ Ultra clean bench is a kind of general local purification equipment, which has reached 209E level of American federal standard, and is
a small local efficient purification unit. It can effectively eliminate the harmful effects of suspended particles and process dust in the air
of the working area on the products. It is a kind of air flow clean working table manufactured by precise numerical control equipment
with reasonable design technology concept. It is widely used in medical and health care, pharmaceutical preparations,
biopharmaceuticals, precision electronics, optics, instruments and meters, animal husbandry and veterinary, plant tissue culture,
pharmacy and food Products, daily chemicals, bioengineering, scientific research institutions and laboratories and other fields.
Feature Description:
◆ The box body is made of 1.2mm thick steel plate, and the worktable is made of SUS304 high-quality stainless steel, which has
antibacterial, corrosion-resistant and easy to clean functions. It has fine appearance and strong corrosion resistance.
◆ Inclined open space is more suitable for human operation.
◆ Using adjustable air volume fan system, touch type switch and multi gear to adjust the voltage, to ensure that the wind speed in the
working area is always in an ideal state.
Technical parameters:
| Index / model | SJ-CJ-1BU Single side (horizontal air supply) super clean workbench |
| Cleanliness grade | ISO 5 (Class 100) |
| Settling bacteria concentration | ≤ 0.5 / dish / hour (φ 90mm culture plate) |
| Mean wind speed | 0.25-0.6m/s (adjustable) |
| Noise | ≤65dB |
| Power Supply | AC, single 220V / 50Hz |
| Illuminance | ≥300LX |
| Vibration half peak | ≤3μm（X.Y.Z） |
| Maximum power consumption | 350W |
| Weight | <110Kg |
| Workspace size | 780×480×565mm |
| Overall dimension of device | 850×700×1450mm |
| Specification and quantity of high efficiency filter | 860×500×50×① |
| Specification and quantity of fluorescent lamp / UV lamp | 20w × ①/ 20w ×① |
| Applicable number | Single person single side / 1 person operation |
