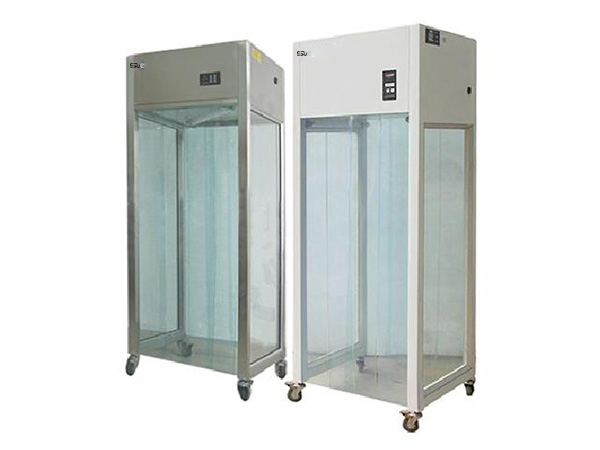

Product overview of clean sampling vehicle：
◆ The product is suitable for the sampling of raw and auxiliary materials except for pharmaceutical preparations and sterile preparations.
It is widely used in the sampling of raw and auxiliary materials in the special occasions of medicine, preparation, electronics, precision
instruments, instruments, food and other industries. According to the GMP standard, the sampling car produced by our factory has
reached the level of ten thousand cleanliness, and the electric components used at the same time meet the requirements of gb1497-85
(electric safety standard) and gb-191 (packaging standard). The electric control panel of the clean sampling car is controlled by
computer light contact, the fan is stepless speed regulation, the air volume is adjusted at will, the clean sampling car is equipped with
ultraviolet sterilization lamp, other specifications and sizes can be customized according to the customer's requirements or both ends
are equipped with soft curtains.
Clean sampling vehicle description：
◆ The clean sampling vehicle is a kind of vertical flow local air purification device. Since the indoor air passes through the primary effect
filtration, the working environment of high cleanliness is achieved from the form of air outlet of high efficiency air filter. This clean
sampling vehicle is designed and manufactured according to GMP standard. Its cleanliness can reach the requirements of grade
100-10000. It is suitable for dust-free environment. It is commonly used for sampling raw materials of pharmaceutical preparations
(excluding sterile preparations). The centrifugal fan and other main components used in the sampling car meet the requirements of
gb1497-87 (motor safety standard). The product structure is composed of stainless steel plate or spray plastic steel plate.
Usage method：
◆ Move the clean sampling car to the place where sampling is needed, fix the sampling car (brake); connect the power supply, turn on
the power switch, turn on the fan switch, the fan starts to work, adjust the voltage to a proper level (generally 220V), and put it into the
sampling barrel after the clean sampling car runs for 15 minutes; after sampling, remove the sampling barrel, turn off the fan and
power supply, unplug the power line, and move the sampling car to the original place Where to come from.
Model and technical parameters:
Model | CZY-1ASteel plate spray molding |
Cleanliness grade | Ten thousand class≥0.5μm（US federal standard 209E） |
Mean wind speed | 0.25-0.6m/s |
Noise | ≤58B（A） |
Power Supply | AC，Single-phase220V/50Hz |
Maximum power consumption | 0.37KW |
Normal working conditions | 5℃～40℃relative humidity：≤80% |
atmospheric pressure | 86～106kpa |
Outline sizemm | 930×720×1700 |
fan speed | Wind speed 5-level adjustable |
