Product introduction:

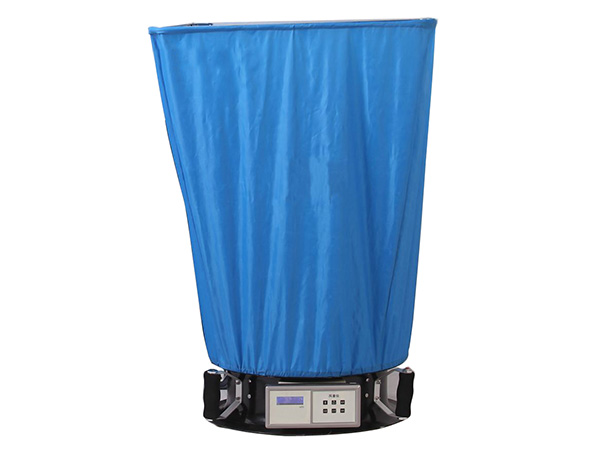

◆ FLY-1 type air volume meter adopts the principle of pitot tube to conduct multi-point and multiple automatic detection of air pressure
and calculate air volume automatically. FLY-1 air volume meter can be directly used to measure the air volume of tuyeres and pipes.
It is fast and simple to measure, and widely used in HVAC, purification technology and other industries. In order to facilitate the
customer's on-site inspection, the mobile support is specially equipped, which can be raised by 2.2m at most and 3.2m as a whole
(including the air volume meter body of 1m). According to the advanced technology of foreign similar products, our factory is the first
to launch the production of this product in China. Each FLY-1 air volume meter has passed the strict 0.5 standard wind tunnel
calibration device to carry out multi-point air volume correction, providing reliable quality assurance for users to accurately measure
air volume.
Model and technical parameters:
Model | FLY-1 air volume meter |
Basic function | LCD with printing interface |
Built in battery | Continuous operation for 30 hours without data loss (within 4h) |
Measuring range | 100~3500m3/h |
Relative error | ≤±5%FS |
Self resistance | ≤5pa |
Automatic storage | Air volume value of 1000 air outlets |
Use environment | Temperature: 5 ~ 35 ℃ |
Relative humidity | 15%~70%RH |
Wind shield | 570x570(mm)/830x830(mm) |
Battery and Charger | 8.4V |
Spare parts | Cradle / external printer |
