SJ-CJ-2FDQ

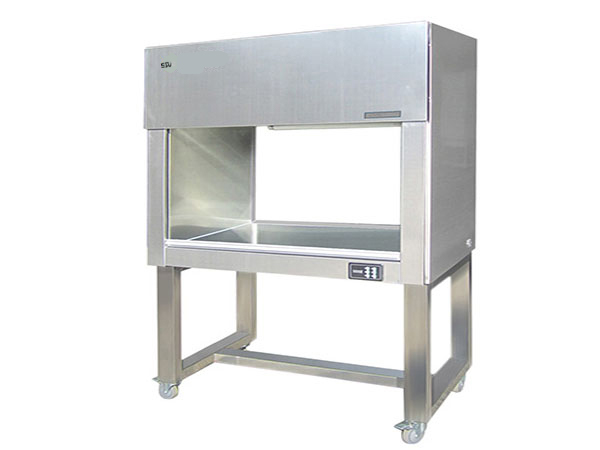

Product Name: super clean table (all stainless steel)
Product model: SJ-CJ-2FDQ (all stainless steel standard)
Product standard: in accordance with JG / T 292-2010 super clean workbench standard

Product description

◆  It is widely used in medical and health, pharmaceutical preparations, biopharmaceutical, plant tissue culture, animal husbandry and

     veterinary, food and beverage, chemical experiment, purification engineering and other fields and laboratories, providing a clean

     working platform for sterile and dust-free clean environment.

◆  The box and table are all stainless steel structure, with delicate appearance and strong corrosion resistance as a whole.

◆  Single side vertical quasi closed table, effectively prevent the external gas from entering and the peculiar smell in the operation area

     from damaging the human body;

◆  Adopt adjustable air volume fan system, touch type switch and multi gear to adjust the voltage, so as to ensure that the wind speed in

     the working area is always in an ideal state;

◆  Sliding door: double suspension glass door, open up and down, easy and flexible operation, rubber damping pad is embedded at the

     bottom of the sliding door to reduce the impact when opening and closing, endless balance method code, free up and down when

     sliding the door, can stay at any position;

◆  Transmission: the double suspension glass door is driven synchronously through guide rail, counterweight pulley block, steel cable,

     counterweight, etc., which is flexible and convenient to open up and down, with low noise;

◆  The front cover can be opened directly to facilitate the replacement of filters, electronic components and accessories.


    Model and technical parameters:



    Index / model

    SJ-CJ-2FDQ Double single side (vertical flow) clean working table all
    stainless steel type

    Cleanliness grade

    Grade 100 @ ≥ 0.5 μ m (209E, US Federal)

    cfu

    ≤ 0.5 / dish / hour (φ 90mm culture plate)

    Mean wind speed

    0.3-0.6m/s (adjustable)

    Noise

    ≤65dB

    Power Supply

    AC, single 220V / 50Hz

    Illuminance

    ≥300LX

    Vibration half peak

    ≤ 3μm(X.Y.Z)

    Maximum power consumption

    800W

    Weight

    <250Kg

    Workspace size

    1360×600×520mm

    Overall dimension of device

    1500×660×1635mm

    Specification and quantity of high efficiency

    filter

    1310×530×50×①

    Specification and quantity of fluorescent lamp

    / UV lamp

    30w×①/ 30w×①

    Applicable number

    Double one-sided / 2-person operation
