Product features and Description:

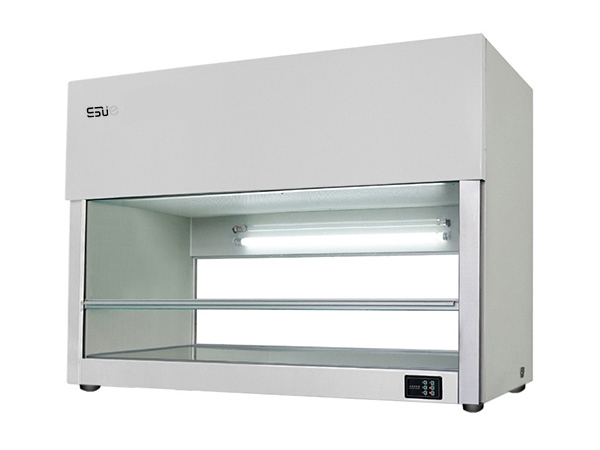

◆ This is a kind of small worktable, specially designed for convenient placement on the table top of the experimental worktable. It is
applicable to all scientific research and experimental operations suitable for clean environment.
Technical parameters:
◆ 1. The box body is made of 1.2mm cold-rolled steel plate, which has strong corrosion resistance. The table top is made of SUS304
high-quality stainless steel, which has antibacterial, corrosion-resistant and easy to clean functions.
◆ 2. Embedded toughened glass is used on both sides for convenient observation.
◆ 3. Compact and practical, easy to handle;
◆ 4. Adopt adjustable air volume fan system, touch type switch and double speed to adjust the voltage, so as to ensure that the wind
speed in the working area is always in an ideal state;
◆ 5. The default of this series of products is no glass sliding door. If you need to add glass sliding door, please explain in advance.
Model and technical parameters:
| Index / model | VD-1300 |
| Cleanliness grade | Grade 100 @ ≥ 0.5 μ m (209E, US Federal) |
| Settling bacteria concentration | ≤ 0.5 / dish (φ 90mm culture dish) |
| Mean wind speed | 0.2-0.6m/s (adjustable) |
| Noise | ≤58dB（A） |
| Power Supply | AC, single 220V / 50Hz |
| Illuminance | ≥300LX |
| Vibration half peak | ≤3μm（X.Y.Z） |
| Maximum power consumption | 400W |
| Weight | 60Kg |
| Workspace size | 1200×600×500mm |
| Overall dimension of device | 1300×650×900mm |
| Specification and quantity of high efficiency filter | 1010×500×50×① |
| Specification and quantity of fluorescent lamp / UV lamp | 20w ×①/20w ×① |
| Applicable number | Double face |
company can customize according to the specific needs of customers
