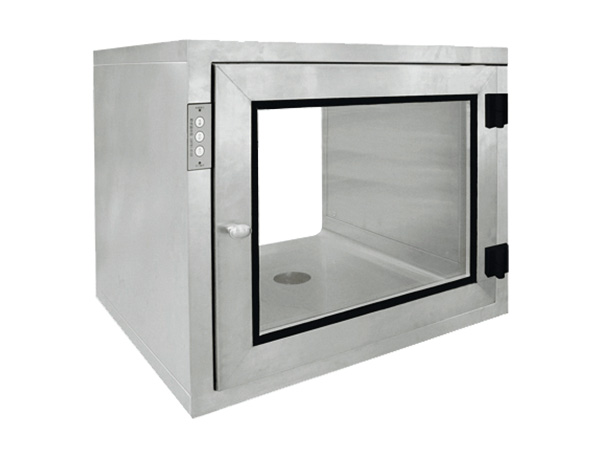

◆ BZC series transfer window (mechanical, electronic interlock transfer window, clean transfer window) the transfer window of common
device is a kind of auxiliary air purification equipment used in clean workshop. (common type) is mainly used between the clean room
and the clean room. (clean type) is the transfer of small items between the clean room and the non clean area, so as to reduce the
opening times of the clean room and minimize the pollution of the clean room or the clean area. Transfer window is widely used in
micro technology, biological laboratory, pharmaceutical factory, hospital, food processing industry, LCD, electronic factory and other
places that need air purification.
Characteristic:
◆ The transfer window is made of stainless steel plate, flat and smooth.
◆ Both sides of the door with mechanical interlock or electronic interlock device can not be opened at the same time.
◆ The transfer window is equipped with glass for easy observation, and the window door is equipped with sealing strip to ensure air
tightness.
◆ And the ultraviolet germicidal lamp is added.
Model and technical parameters:
| Model | BZC-500 | BZC-600 | BZC-800 |
| Ordinary type | |||
| Working ruler (mm) | 500x500x500(400) | 600x600x600(500) | 800x800x800(600) |
| Boundary dimension (mm) | 630x580x570 | 720x680x670 | 920x880x870 |
| Clean type | |||
| Working ruler (mm) | 500x500x500(400) | 600x600x600(500 | 800x800x800(600) |
| Boundary dimension (mm) | 630(660)x990x500 | 730(760)x1090x600 | 930(960)x1290x800 |
