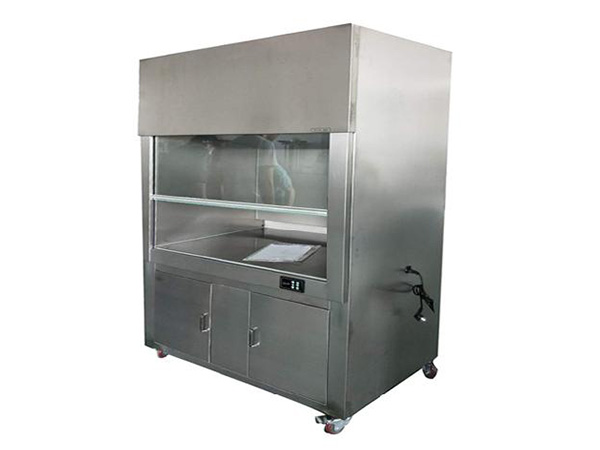

TFG-Q18(stainless steel）

◆  Structure combination: the whole stainless steel combined cabinet is adopted, and the independent water, electricity and pipeline

     system are designed to accommodate the cabinet;

◆  Outer box: made of 1.2mm thick (including) all stainless steel stamping;

◆  Table and optional sink 304 stainless steel, corrosion resistant;

◆  Lighting: 30W fluorescent lamp;

◆  Handle: SUS304 stainless steel semi smooth handle is adopted;

◆  Deflector: the deflector can discharge the harmful gas in different height space from different sections; the air in the fume hood can

     be discharged at the speed of 0.5m/s of the operation surface wind speed to ensure that there is no residual gas;

◆  Window: the glass window can be pulled up and down, staying at any position can provide more safe and comfortable test space for

     the experimenter;

◆  Upper and lower opening height of cabinet operation door: 600-700mm;

◆  Working face wind speed: 0.25-0.38m/s;

◆  Air volume: 1100-1800m3 / h;

◆  Exhaust resistance: 5-12mmh2o;

◆  Water supply: 1 set; water supply: 1 set DN50 (configured according to user requirements)

◆  Air outlet size: Φ 200 - Φ 300mm.

    Model and technical parameters:
