◆ Structure combination: the whole stainless steel combined cabinet is adopted, and the independent water, electricity and pipeline
system are designed to accommodate the cabinet;
◆ Outer box: made of 1.2mm thick (including) all stainless steel stamping;
◆ Table and optional sink 304 stainless steel, corrosion resistant;
◆ Lighting: 30W fluorescent lamp;
◆ Handle: SUS304 stainless steel semi smooth handle is adopted;
◆ Deflector: the deflector can discharge the harmful gas in different height space from different sections; the air in the fume hood can
be discharged at the speed of 0.5m/s of the operation surface wind speed to ensure that there is no residual gas;
◆ Window: the glass window can be pulled up and down, staying at any position can provide more safe and comfortable test space for
the experimenter;
◆ Upper and lower opening height of cabinet operation door: 600-700mm;
◆ Working face wind speed: 0.25-0.38m/s;
◆ Air volume: 1100-1800m3 / h;
◆ Exhaust resistance: 5-12mmh2o;
◆ Water supply: 1 set; water supply: 1 set DN50 (configured according to user requirements)
◆ Air outlet size: Φ 200 - Φ 300mm.
Model and technical parameters:

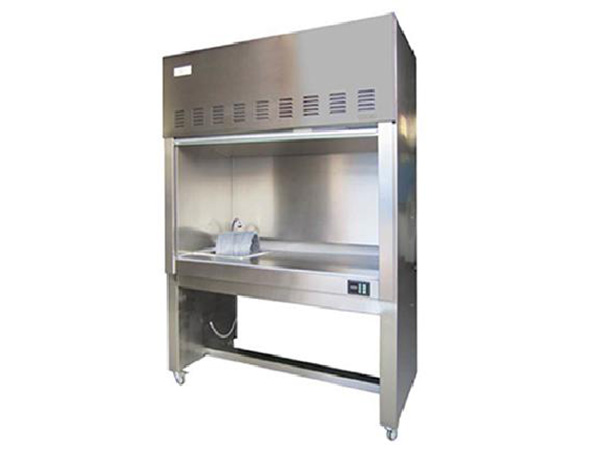

Index / Model | TFG-Q12 type fume hood (all stainless steel) |
Exhaust wind speed | Adjustable within 0.3m-0.6m/s |
Inlet water pressure | >0.5Pax |
Power | ≤300W |
Power configuration | AC single phase 220V50Hz |
Weight | 160k |
Inner diameter size L*D*H | 1100×700×700 ㎜ |
Diameter size L*D*H | 1200×750×2150 ㎜ |
Exhaust pipe caliber | φ250mm |
Wind direction | Top out |
