CYG-1600

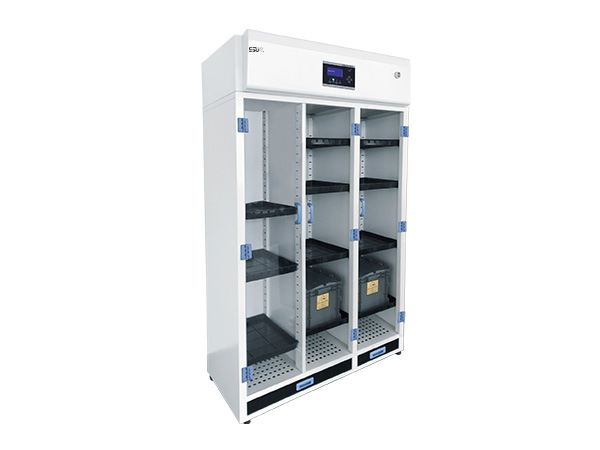

Product Name: clean gas medicine storage cabinet
Product model: CYG-1600
Product standard: the purified gas medicine storage cabinet is specially designed and manufactured for high-end laboratory's pre-treatment and post storage of toxic chemicals and volatile drugs.

Product description

    Product introduction:

◆  The purified gas medicine storage cabinet is specially designed and manufactured for high-end laboratory's pre-treatment and post

     storage of toxic chemicals and volatile drugs. It is equipped with advanced air filtration system, which can improve the indoor

     environment of laboratory personnel and help laboratory operators to reduce direct contact with chemical vapor and residual toxic

     gas. The clean air medicine storage cabinet is composed of cabinet body, laminate, HEPA high efficiency filter, unattended function,

     microcomputer LCD control panel, filter saturation detection and indoor environment detection (optional), ultra quiet fan, fan

     governor, temperature and humidity display (optional), UV sterilization lamp (optional) and other parts. For the door with partition

     cabinet room, it is used to place transparent acrylic door plate for classification of incompatible chemicals to prevent corrosion and

     facilitate the inspection of drug storage. It is equipped with adjustable anti-corrosion coating layer plate as standard, which is

     acid-base resistant and the load of layer plate is ≥ 50kg.

    Excellent:

◆ No need to install pipeline engineering, convenient installation, no exhaust gas, new environmental protection.

◆ According to the experimental requirements, the filter module system can be selected at the top to meet different experiments.

◆ Advanced modular filtration technology can completely absorb harmful gas, particle dust and other substances produced in filtration

     experiment.

    Product description

◆ The main material of clean gas type medicine storage cabinet is ≥ 1.2mm anti-corrosion coating galvanized steel plate.

◆ LED LCD, HD display, beautiful panel, easy to operate.

◆ The temperature and humidity monitoring system can display the temperature and humidity in the operation area in real time and set

     the alarm value.

◆ Monitoring system: monitor the operation status and failure alarm of the fan, and effectively control the leakage of toxic substances.

     Set the filter saturation alarm value, monitor the filter saturation status, and timely remind the user to replace the filter to ensure the

     safety of product use.

◆ CPU controllable system: CPU control panel, displaying basic operation information of the device.

◆ Ultra quiet fan, stable service life ≥ 60000 hours (about 6 years).

◆ It does not need to exhaust the air in the laboratory, does not affect the use of air conditioning, and can save a lot of energy.


    Model and technical parameters:



    Index / model

    CYG-1600

    Volume

    1100 (320 bottles of 500ml reagent can be placed)

    External dimensions

    1600×520×2000mm

    Internal dimensions

    1540×460×1670mm

    Texture of material

    Cold rolled steel plate (anti-corrosion coating)

    Air handling capacity

    ≥202m3/h

    Fan

    Service life ≥ 60000 hours (about 6 years), non sparking static electricity

    Power

    ≤80w

    Low noise

    ≤50dB

    Voltage / frequency

    220~242/50~60v/Hz

    Rated current

    ≤0.25A

    Operating ambient temperature

    -20°C~60°C
